Advanced Sludge Dryer Machine For Efficient Waste Management 380V/220V

Advanced Sludge Drying Equipment for Efficient Waste Management

Hazardous Waste Incinerator for Industrial Use

Basic Info.





















Production Description:

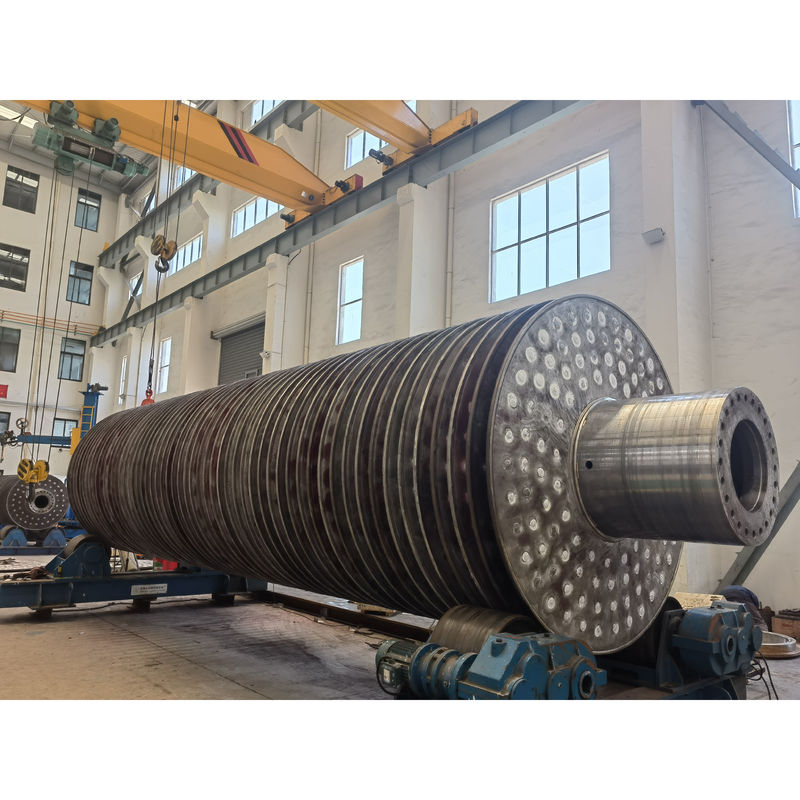

The disc dryer can not only heat the shell, but also heat the internal disc, which greatly increases the drying area, improves the thermal efficiency and ensures the full drying of the material. The dryer is composed of a horizontal housing and a rotor with steam heating, the shaft is mounted with a plurality of heating discs, the disc is equipped with adjustable Angle scraper. When working, the material can be heated, and the material in the heating can be pushed along the direction of the discharge end. The steam distribution device inside the rotating shaft can be evenly distributed to each heating disc. The steam flows in the disc on both sides of the disc, so that the heating disc maintains a constant temperature, and the condensate is discharged through the rotating joint at the shaft end.

With the rotation of the spindle, the material is fully stirred and mixed under the combined action of the scraper and the disk to increase the maximum heat exchange area, and the exhaust gas generated after heating is discharged from the top of the shell, and the weak vacuum degree is kept in the pipeline to prevent the steam from leaking and avoid inhaling too much cold air. The product is widely used in the drying of fish meal, bone meal, dyes, pigments, sludge, chemicals, pesticides and other powder products.





Process Diagram:



Production Features:
• Handling capacity :30-200t/d
• Deal with various forms of hazardous waste, like solid, semi-solid, liquid ,colloid, gas etc.
• Patent for high chlorine, high sulfur and other hazardous waste treatment
• Flexible use of different processes according to regional emission
requirements
• Full utilization of waste heat
• Super smart medical waste feeding system
• Whole process monitoring system for medical waste





Main technical parameters of product:



Product Show
In production :

Waiting for ship

Company Profile :

Jiangsu Zhongding Environmental Engineering Co., Ltd. (Zhongding) is a well-known enterprise in environmental protection industry in China, specializing in the researching and developing as well as providing of hazardous waste treatment solutions. Our main products include hazardous waste disposal systems,Waste salt melting furnace, integrated sludge drying and incineration system, etc.; corresponding equipment including rotary kiln, baghouse dust collector, filter bag cage, disk feeder, etc. As a premium solution provider, we also offer services including system designing, producing ,installing, debugging, etc.
The company currently has over 140 employees and covers an area of 180000 square meters, with a comprehensive production capacity reaches up to $70 million US dollar. Our facility is equipped with advanced manufacturing, testing, and installation equipment, in which production management team constantly learns and practices to enhance our technological and service abilities.
Meanwhile, we have a professional installation team that has accumulated valuable experience throughout practices in installation of over 40 hazardous waste incineration system and 5 integrated sludge drying and incineration system ,the high-quality and high-efficiency services have earned praises from our customers.
We sincerely and warmly welcome friends and customers from home and abroad to visit our company!

FAQ:
Q: How to buy your products?
A:You can provide us what kind of waste and the waste weight you want to burn per day (connect us for more details). We will send you a questionnaire to fill in. Then our engineer will design the suitable solutions for you and prepare to give you best price.

Q: How to pay?
A:TT and L/C are acceptable and TT will be more appreciated. The payment rate shall be negotiated according to the situation.

Q: What is the delivery time?
A: It depends on our order quantities and the specification of your incinerator .

Q: How to package the product?
A: We use standard seaworthy package combined with container and bulk .

Q: How to keep your equipments from corrosion?
A: We use the world-famous paint according to your requirements and paint strictly according to the standard process.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you such as the video technical support and online support. If the fumace size is large enough, we will send a technician to guide for installation and debugging . After debugging equipment, he will teach your workers how to use it and how to maintain.
